UNRIVALED OXY-FUEL FLAME CUTTING CAPABILITIES
Accurate Metal Products (AMP) stands at the forefront of midwest steel fabrication, offering exceptional oxy-fuel flame cutting services. As experts in Oxy-Fuel cutting—alternatively known as oxyacetylene cutting, oxy cutting, or flame cutting—we leverage the latest technology and decades of experience to deliver high-precision cuts with unparalleled efficiency.
Our state-of-the-art CNC-controlled cutting action can manage up to 10 torch heads, ensuring optimum productivity without compromising precision. We also offer additional services, such as cleaning, packaging, barcoding, and free delivery within a 150-mile radius of our Milwaukee or Rockford facilities.
Our Flame Cutting Capabilities & Specs
-
Click to expand or collapse table
Cutting Process Beveling, straight line, and circle Materials Carbon steel, low alloy steel, alloy steel Thickness Range .25" to 12" Maximum Length & Width 40' x 10' Kerf Narrow to reduce waste Lifting Capacity 5 to 25 tons Industry Standards ASTM, ANSI, ASME File Formats AutoCAD (DWG, DXF) Lead Times Inquire for current lead times
Cutting tolerances by sheet size can be found lower on this webpage.
Our Flame Cutting Equipment
As a matter of policy Accurate Metals always uses the newest equipment available, constantly cycling out the old and bringing in the new. This minimizes the risk of downtime and maximizes the quality of our cuts.

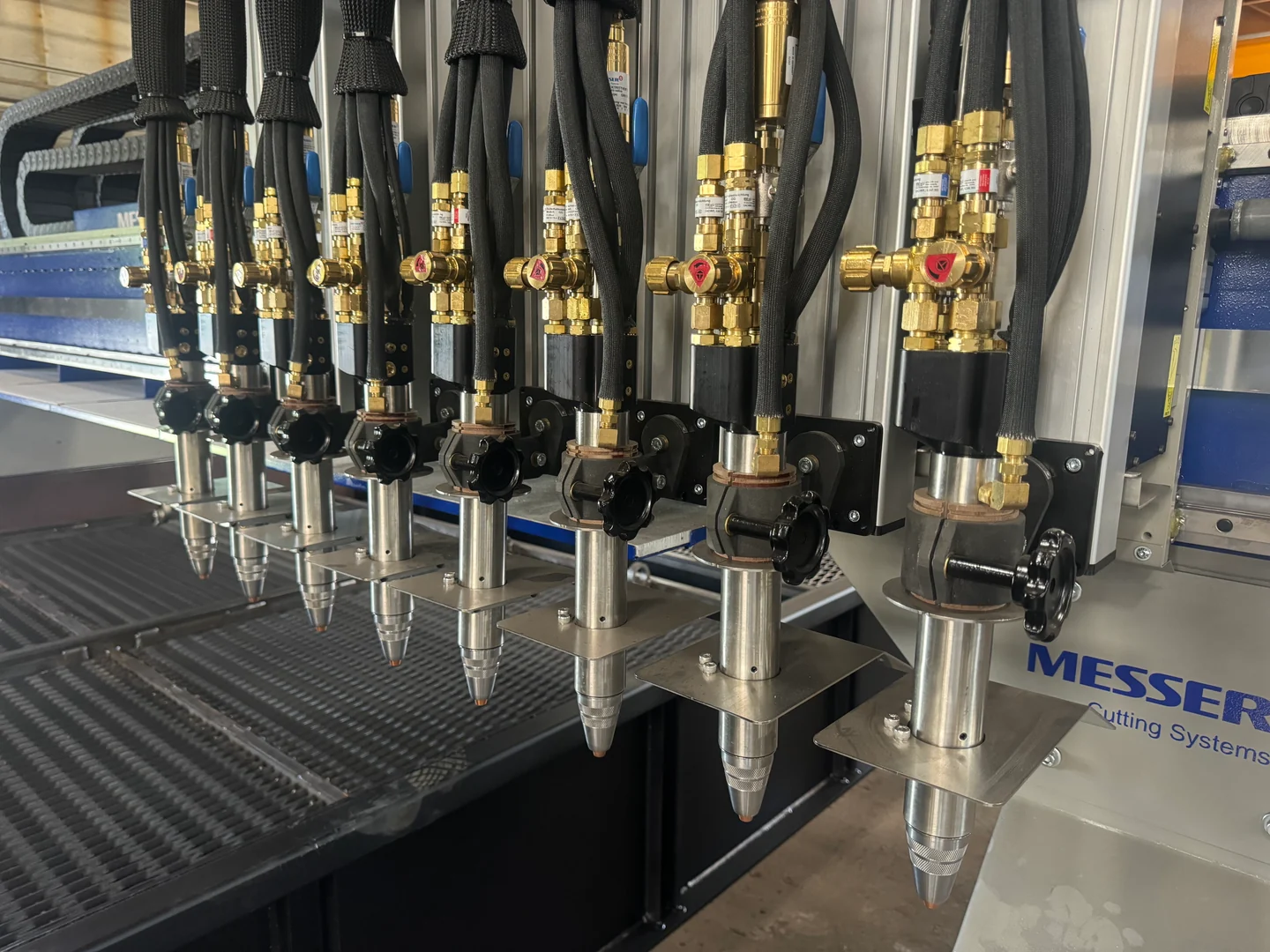

7x MESSER / MG TITIAN 8 TORCH OXYFUEL FLAME CUTTER W/ GLOBAL CONTROL

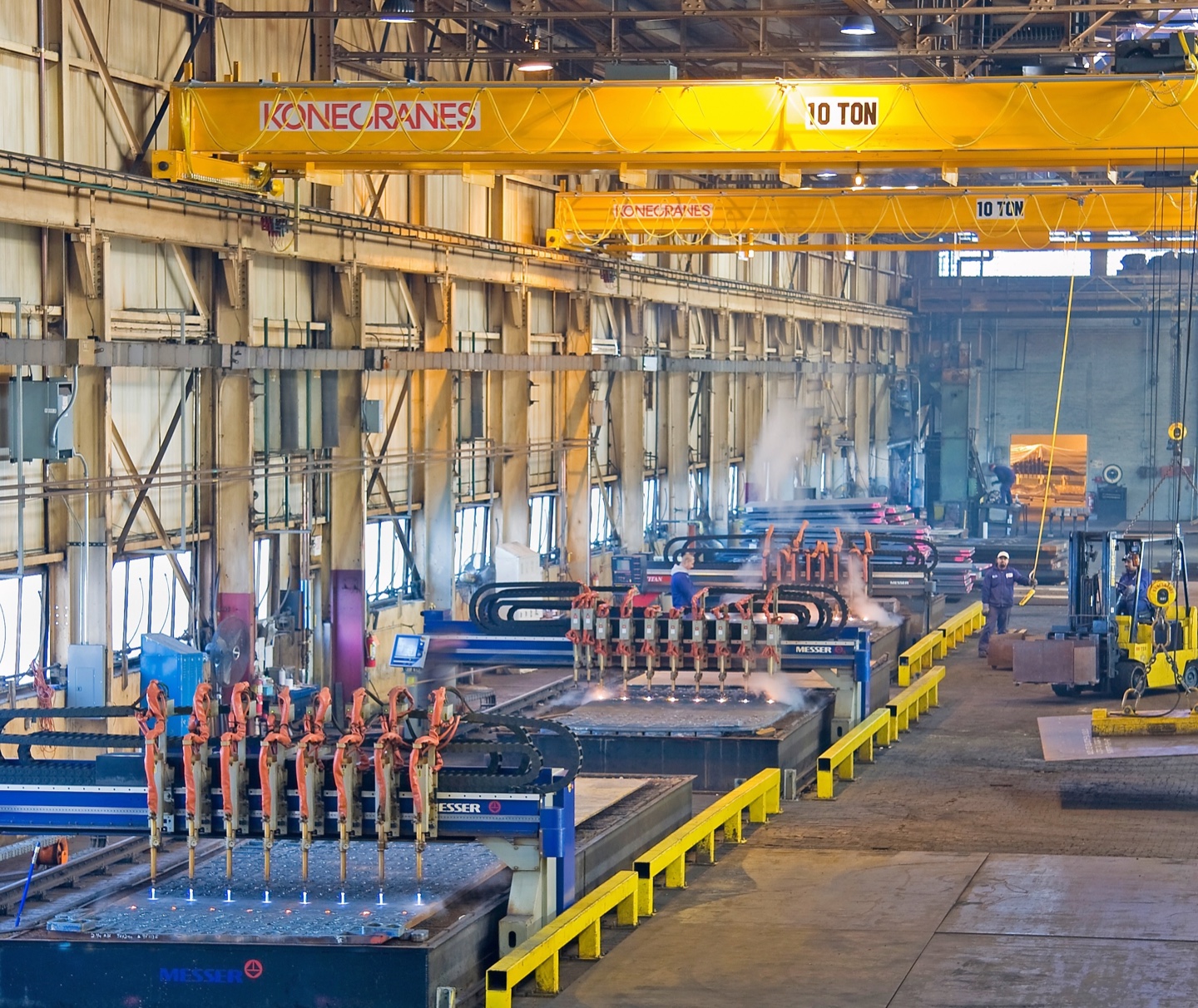

Accurate Metals operates seven Messer Titan cutting tables each with 8 oxy-fuel torches, enabling cutting sizes up to 10’ X 40’ and 12” max thickness for carbon Steel
Cutting Tolerances
Always striving to utilize the newest and most cutting edge machinery has helped Accurate Metals provide consistent, clean, tight tolerance cuts for our clients for over 20 years.
| Thickness | Tolerance |
|---|---|
.75 to 2″ |
± .063″ |
2.125 to 5.75″ |
± .094″ |
6 to 7.5″ |
± .157″ |
8 to 12″ |
± .250″ |
In addition to the above, a slight bevel/kerf angle may occur |
(up to 1.5 degrees) |
Thickness: |
Bevel/ Kerf Angle: |
1.25" |
.032" |
2.5" |
.063" |
5" |
.125" |
6" |
.157" |
9" |
.25" |

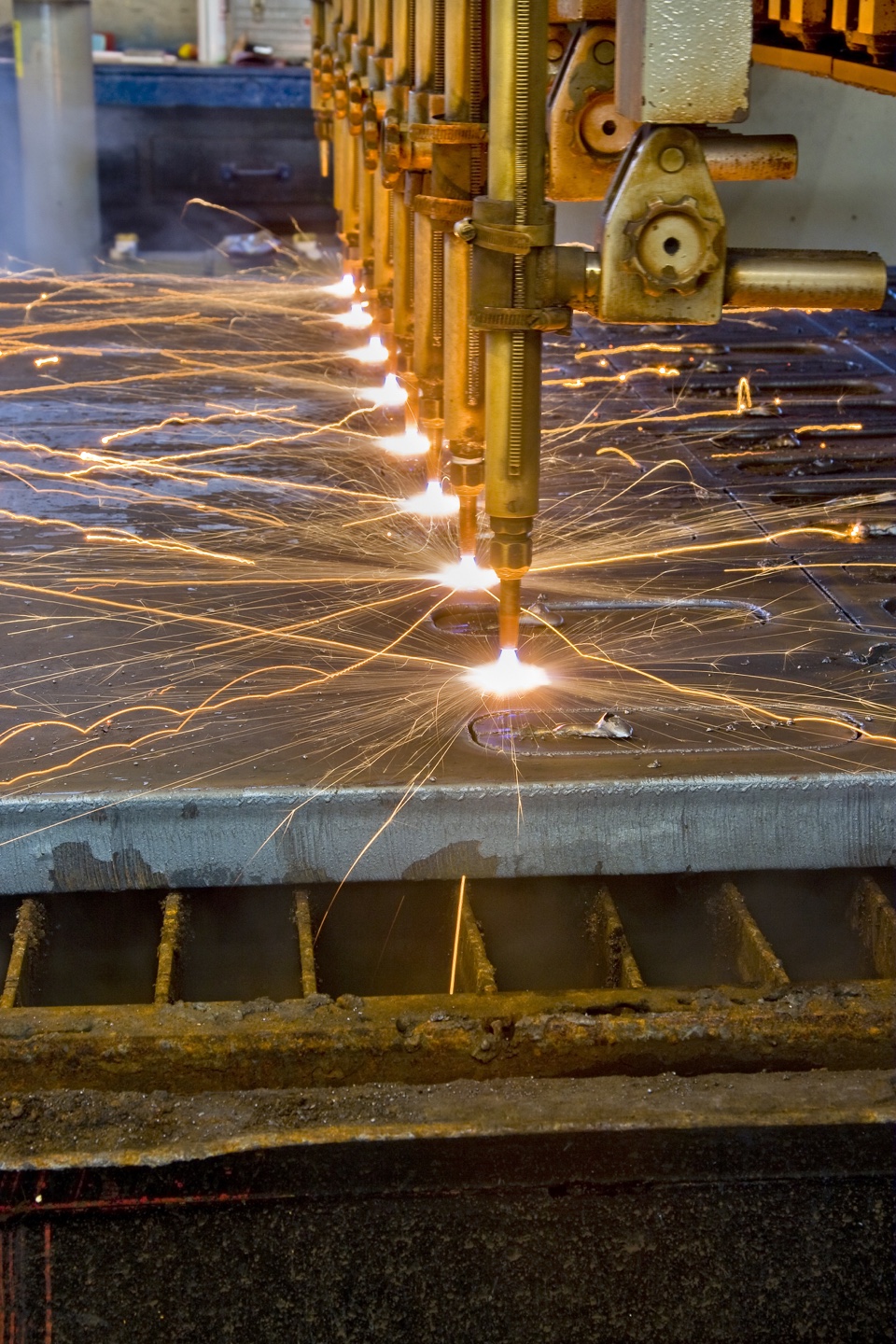

Oxy-Fuel Flame Cutting Applications
Oxy-Fuel Flame Cutting is an ideal technique for fabricating steel and iron components for numerous industries, including agriculture, automation, construction, mining, nuclear, material handling, and many others. The following are some examples of our capabilities in action:
-
Electrical: The precision and power of oxy-fuel cutting allowed us to fabricate a steel rotor as part of a heavy electrical machinery braking system.
-
Energy: We combined oxy-fuel cutting with machining to create a steel crankshaft counterweight for power generation.
-
Manufacturing: With oxy-fuel flame cutting, we produced a custom steel drive ring for rock crushing applications.
-
Mining: Our oxy-flame cutting service was instrumental in creating a large A36 steel bearing cap for surface mining equipment.
Interested in our industry leading oxy-fuel flame cutting services?
